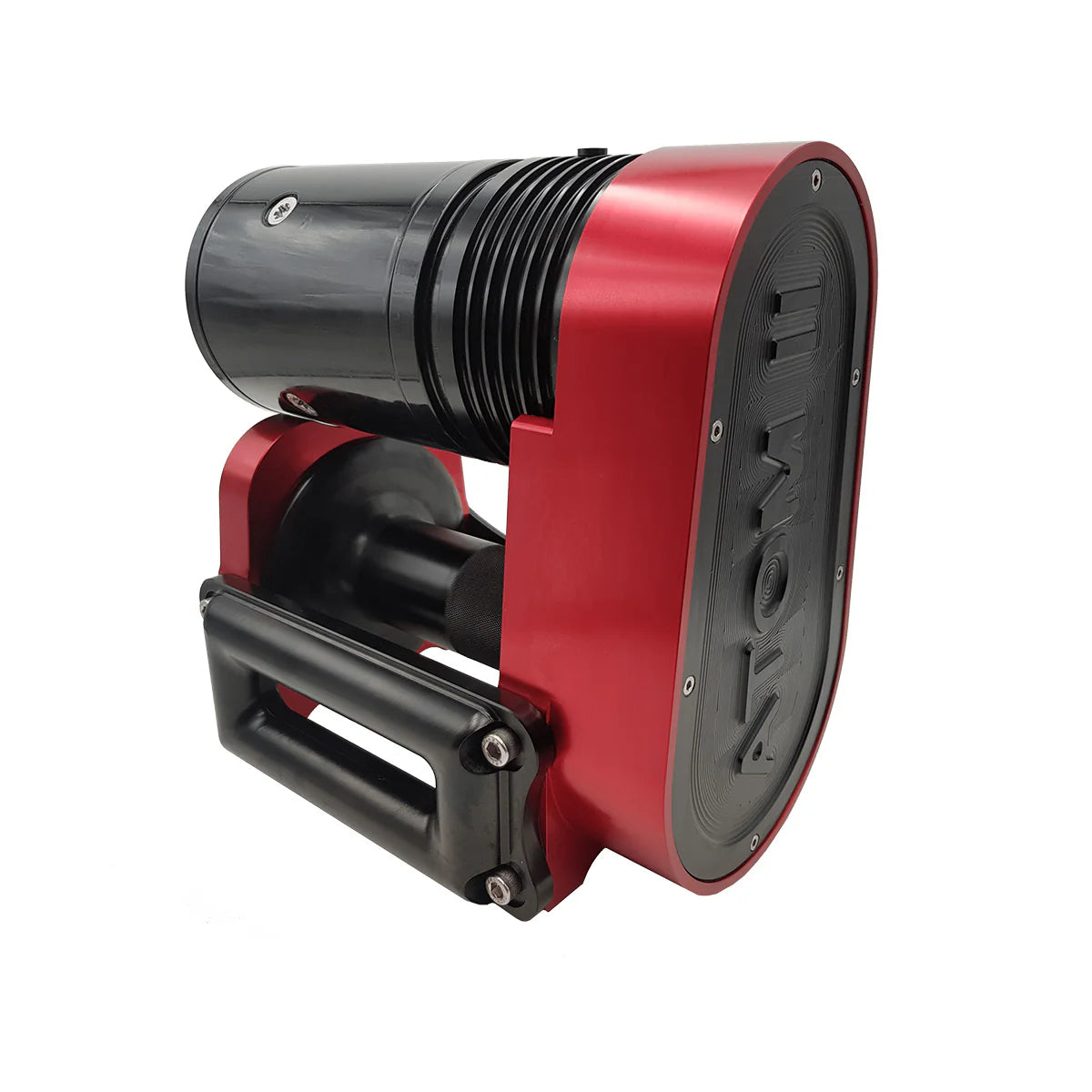

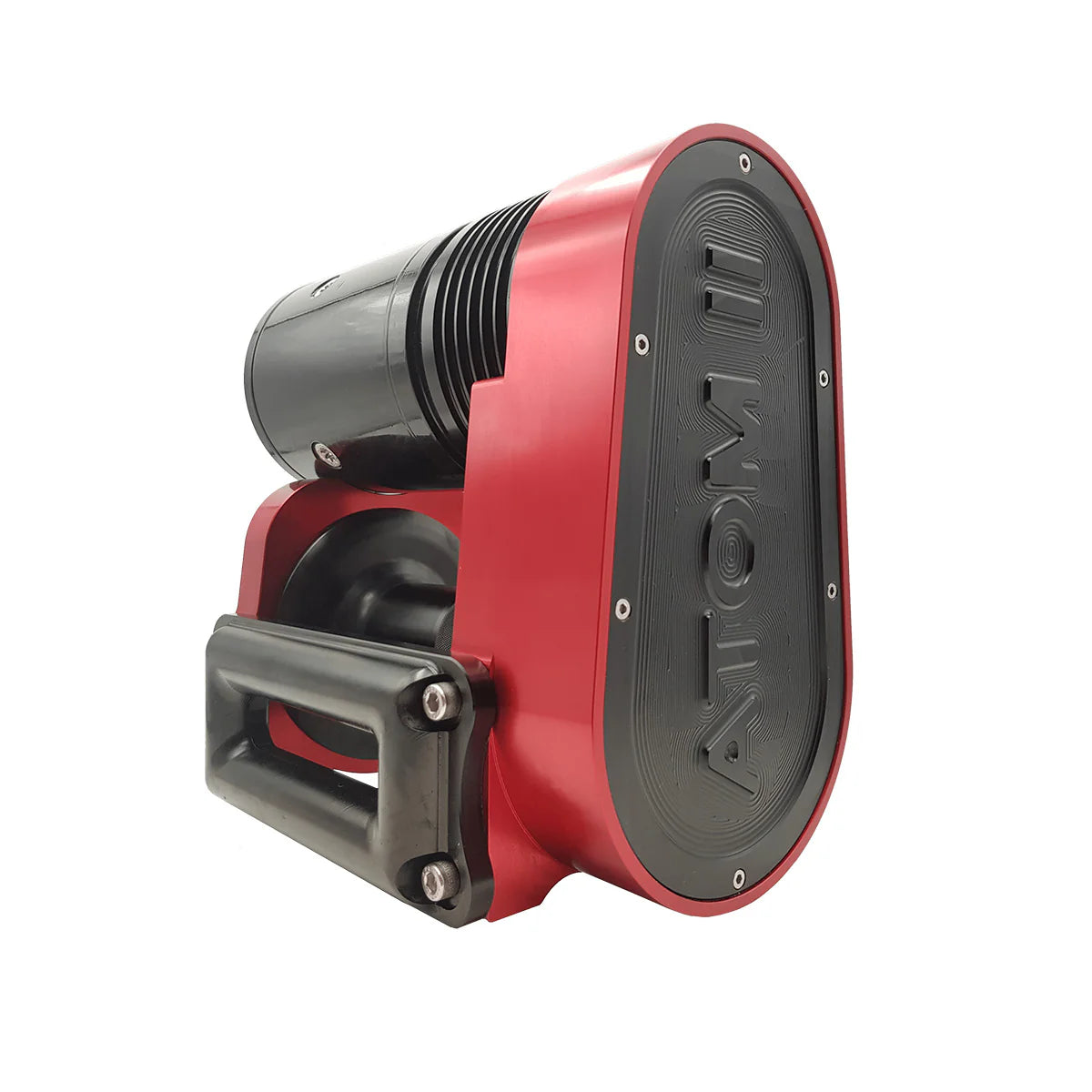

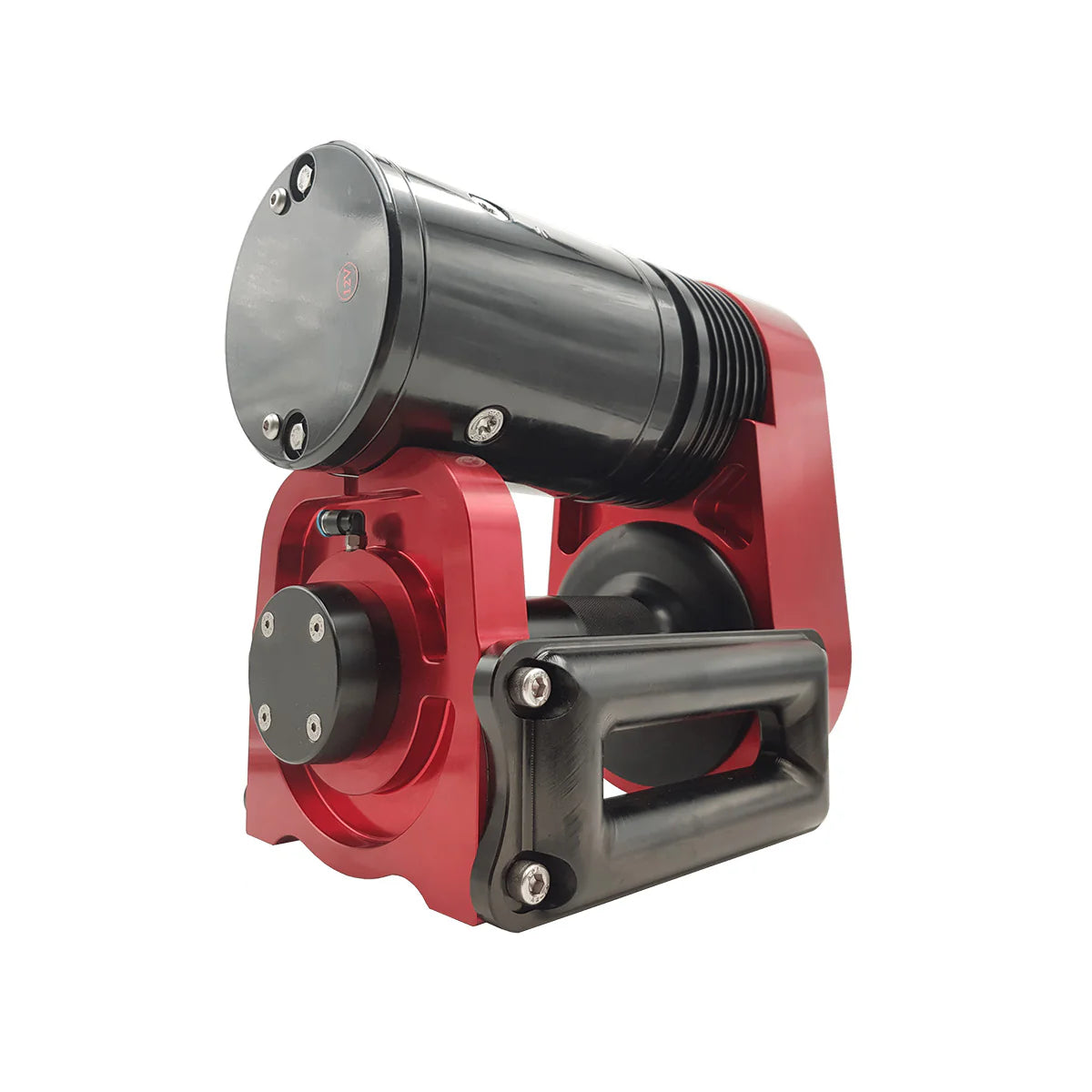

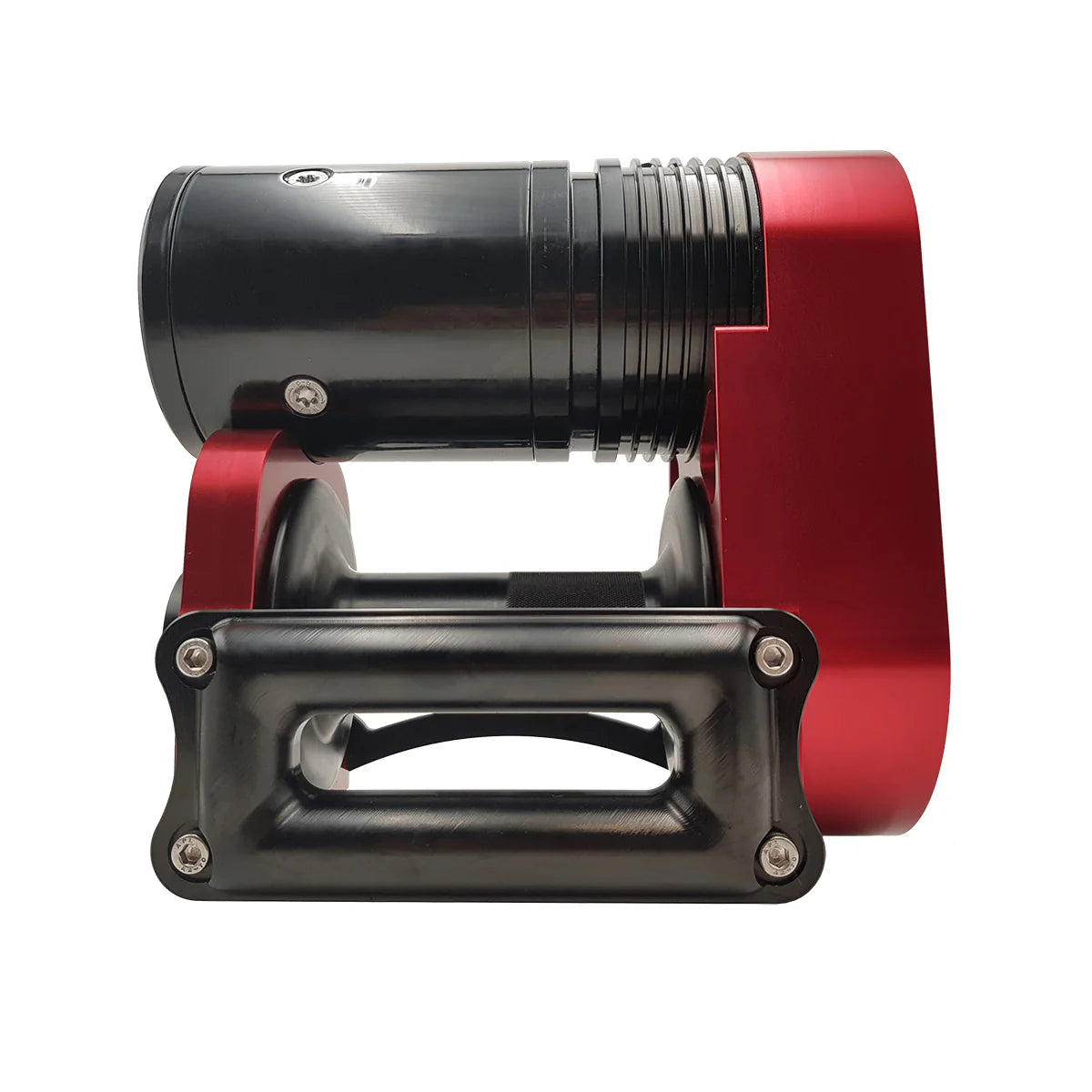

RED Winches Electric UTV/ATV Winch – Atom2 12V

The Red Winch Atom2 ATV winch is compact, powerful and fast.

This 12-volt electric winch is primarily designed for ATV, UTV and Quad vehicles and is an excellent choice for high speed and power for 4x4 competition use and serious motorsport events. This model is the air freespool option.

Machined by Red Winches in the UK from solid billet high-grade aluminium, this ATV winch is designed and engineered to meet the most demanding conditions worldwide.

Key Features

• ATOM2 ATV winch in anodised finish
• Winch body CNC machined from solid high-grade heat-treated aerospace aluminium
• Compact high mount (motor) style winch
• Full drum disconnect for super smooth rope release
• Air-operated free spool control
• Albright Heavy Duty DC88 Solenoid
• Hard anodised aluminium fairlead
• Comes with air free-spool and air brake
• Winch speed: 24.7M/Min – 81’/Min (12V on 12V OX Motor)
• Winch power: 1,500kg (3,300 lbs)
• Winch weight: 20kg

Air Freespool

This ATV winch comes with an air-operated freespool, which can be controlled by a toggle switch on the dash or an air solenoid switch.

It allows you to put the drum into freespool without physically going to the winch. You can operate it from inside your truck or vehicle. This is ideal when mounting the winch in a discrete bumper.

Fitment Notes

• Winch rope is sold separately.
• This winch will hold 30m of 8mm diameter or 40m of 6mm diameter synthetic rope.
